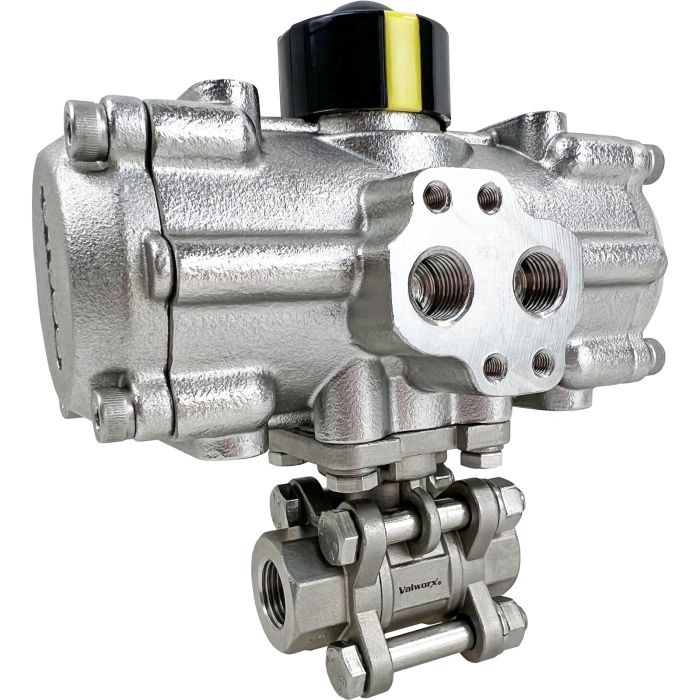

3/8" All Stainless 3-pc Ball Valve - Spring Return

Valworx 532503 air actuated all stainless spring return ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. 316 stainless steel construction of the valve and actuator offer superior corrosion resistance. Rugged IP66 actuator enclosure suitable for washdown applications. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Ball valve can be mounted in any orientation.

Ball Valve Standard Features

1000 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Full port for unrestricted flow

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Triple PTFE/Viton stem seal design, live loaded and adjustable

Pneumatic Actuator Standard Features

316 Stainless steel body, pistons and pinion

IP66 enclosure rating suitable for washdown applications

Extended cycle life (1 million cycles)

Quarter turn rack & pinion design

Highly visible valve position indicator

Dry or lubricated pilot air

Factory lubricated for normal life

Namur & ISO mounting

Options (see Accessories tab)
