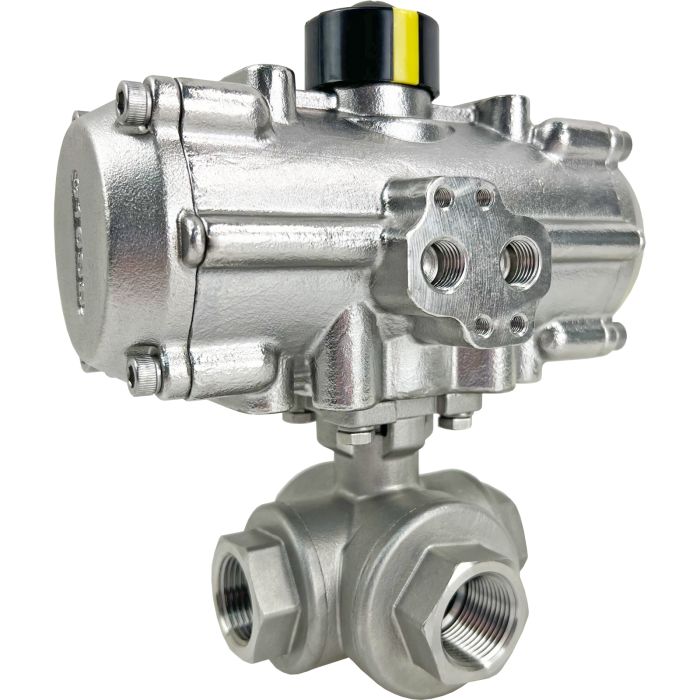

3/4" All Stainless 3-Way T-Diverter Valve, Double Acting
SKU
533906
Series
5339
List Price: $688.14
Price:
$550.51
- Buy 3 for $495.46 each and save 10%
Valworx 533906 air actuated 3-way full port stainless steel ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. This diverter valve has a T-port flow pattern. There is no flow shutoff position with this type valve. 316 stainless steel construction of the valve and actuator offer superior corrosion resistance.
Rugged IP66 actuator enclosure suitable for washdown applications. Double acting actuators use an air pressure signal (80- 120PSI) to change the valve to position 1 or position 2. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port design 316 stainless steel body, ball and stem Four ball seat design allows for Full Pressure at any port RTFE ball seats for extended cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable
Pneumatic Actuator Standard Features316 Stainless steel body, pistons and pinion IP66 enclosure rating suitable for washdown applications Extended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Namur & ISO mounting
Options (see Accessories tab)
Rugged IP66 actuator enclosure suitable for washdown applications. Double acting actuators use an air pressure signal (80- 120PSI) to change the valve to position 1 or position 2. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Actuator Body/Pistons/Pinion | 316 Stainless Steel |
|---|---|
| Actuator Seals | NBR |
| Actuator Temperature Range | -13 to 131 °F (-25 to +55 °C) |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Air Pilot Pressure | 80-120 PSI |
| Ball | 316 Stainless Steel |
| Ball Seats | PTFE (Teflon) |
| Cycle Time | Approx. 1 second per 90° rotation |
| Enclosure Protection | IP66 Weatherproof |
| Max Fluid Velocity | 10 feet per second |
| Pipe Size | 3/4" NPT female |
| Port Size | Full Port, orifice 0.8 inches, Cv 18.9 |
| Pressure (Max) | 1000 PSI (see P/T chart), 25 PSI steam with kit, vacuum service to 29" Hg |
| Stem Seals | PTFE (Teflon)/FKM (Viton) |
| Type | 3-way T-Port Diverter All Stainless Double Acting |
| Valve Body | 316 Stainless Steel |
| Valve Temperature Range | -4 to +392 °F (-20 to +200 °C) |
-
