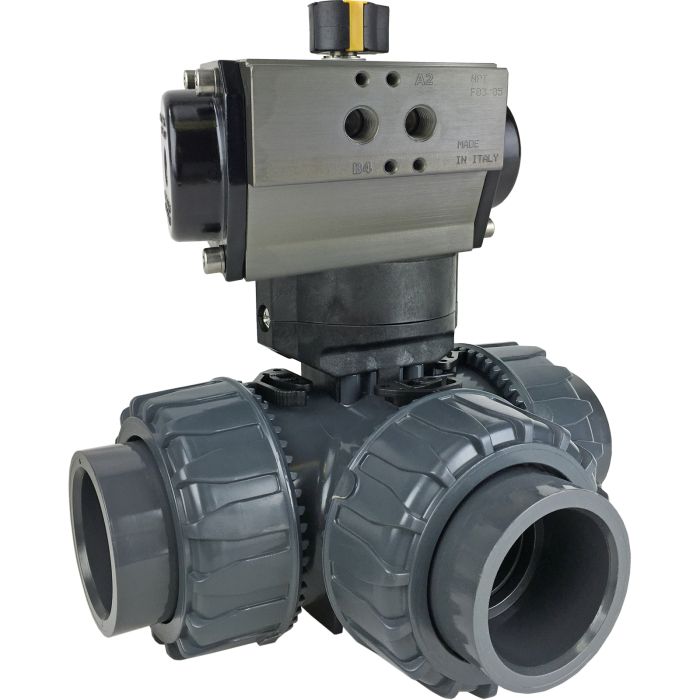

2" Air Actuated 3-Way T-port PVC Ball Valve - Spring Return

Valworx 526052 air actuated 3-way PVC ball valves are used to control the flow of water and other compatible liquid media (not suitable for compressed air or gas). The T-port flow pattern is typically used as a diverter valve. Ideal where NSF approved construction is required for potable drinking water as well as other industrial applications. Spring return actuators use an air pressure signal (80-120PSI) to change the valve to position 2 and springs to return the valve to position 1. The valve will fail to position 1 upon loss of air signal (or electrical power, if energized using a pilot solenoid valve). Actuator has standard ISO/Namur interface for mounting optional direct mount solenoid valve and other accessories. These actuated ball valves can be mounted in any orientation. Both female NPT and IPS socket end connectors are included with each valve.

Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path and reduced water hammer.

Ball Valve Standard Features

Industrial quality True Union design

Full Port for unrestricted flow

Union nut locking device prevents back-off

Four ball seat design allows for full pressure at any port

Energized PTFE ball seats for lower torque and extended life

Micro-adjustment of the ball seats

Leak free dual stem seal design

Series 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water

Includes IPS glue sockets and NPT end connectors

Air Actuator Standard Features

Actuators designed for minimum 1 million cycles

Rugged quarter turn rack & pinion design

Highly visible valve position indicator

Dry or lubricated pilot air

Factory lubricated for normal life

Anodized aluminum body with polyester coated end covers

ISO/Namur mounting for valve accessories

Options (see Accessories tab)
