4" All Stainless Ball Valve - Double Acting
SKU
533532
Series
5335
List Price: $2,935.11
Price:
$2,348.09
- Buy 3 for $2,113.28 each and save 10%

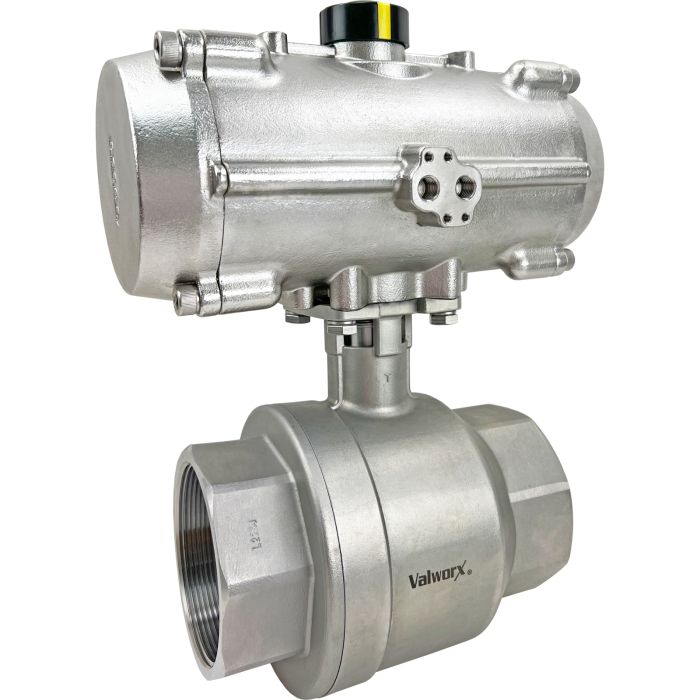

Valworx 533532 air actuated all stainless double acting ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. 316 stainless steel construction of the valve and actuator offer superior corrosion resistance. Rugged IP66 actuator enclosure suitable for washdown applications. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Ball valve can be mounted in any orientation.
Ball Valve Standard Features800 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable
Pneumatic Actuator Standard Features316 Stainless steel body, pistons and pinion IP66 enclosure rating suitable for washdown applications Extended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
Actuator Body/Pistons/Pinion | 316 Stainless Steel |
---|---|
Actuator Seals | NBR |
Actuator Temperature Range | -4 to 176 °F (-20 to 80 °C) |
Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
Air Pilot Pressure | 80-120 PSI |
Ball and Stem | 316 Stainless Steel |
Ball Seats | RTFE (reinforced Teflon) |
Cycle Time | Approx. 1 second per 90° rotation |
Enclosure Protection | IP66 Weatherproof |
Max Fluid Velocity | 10 feet per second |
Pipe Size | 4" NPT female |
Port Size | Full Port, Orifice 3.94 inches, Cv 710 |
Pressure (Max) | 802 PSI see P/T chart, vacuum up to 29inHg |
Stem Seals | PTFE/ Viton |
Type | All Stainless Air Actuated 2 way Ball Valve- Double Acting |
Valve Body | 316 stainless steel CF8M |
Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
-
Stainless Steel Double Acting Air Actuator DA125Stock #: 576096Usually Ships: Same DayPrice: $1,552.32
