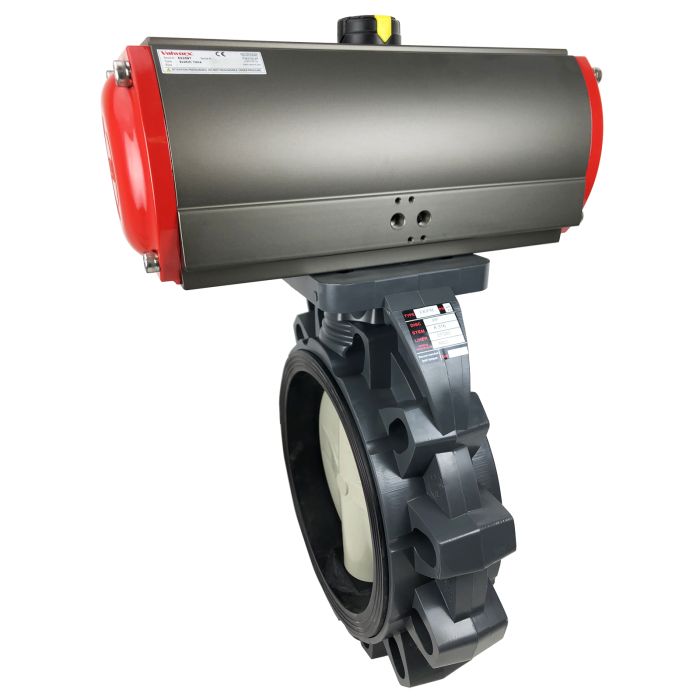

10" Air Actuated PVC Butterfly Valve, Scotch Yoke - Double Acting
Stock #
542312
Series
5423
List Price: $2,956.32
Price: $2,365.06
- Buy 3 for $2,128.55 each
Usually Ships: 1- 3 Days
Valworx 542312 air actuated PVC Butterfly valves are used for on-off control of water and other compatible media. Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. These actuated butterfly valves can be mounted in any orientation.
PVC butterfly valves should never be used for compressed gas applications.
Advantages of air actuated pvc butterfly valves over other type valves may include: lower weight, higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path and reduced water hammer.
Butterfly Valve Standard FeaturesIndustrial grade PVC butterfly valve Pressure rated 150 psi at 73°F Polypropylene (PP) disc ANSI 150 wafer-style flange connection 316 stainless steel shaft EPDM primary liner Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
Air Actuator Standard FeaturesActuators designed for minimum 1 million cycles Rugged quarter turn Scotch yoke design Highly visible valve position indicator Factory lubricated for normal life Anodized aluminum body with polyester coated end covers Dry or lubricated pilot air ISO/Namur mounting for valve accessories
Options (see Accessories tab)
PVC butterfly valves should never be used for compressed gas applications.
Advantages of air actuated pvc butterfly valves over other type valves may include: lower weight, higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path and reduced water hammer.
Butterfly Valve Standard Features
Air Actuator Standard Features
Options (see Accessories tab)
| Type | Air Actuated PVC Butterfly Valve- Double Acting |
|---|---|
| Cycle Time | Approx. 2/1 seconds open/close per 90° rotation |
| Pipe Size (in)-Specs | 10" (DN250) |
| Disc Size (inches) | 9.84 |
| Suitable Flanges | ANSI B16.5 |
| Cv | 3724 |
| Pressure Rating | 150 PSI |
| Valve Temperature Range | 32 to 140°F (0 to 60°C) |
| Actuator Temperature Range | -4 to 167°F (-20 to 75°C) |
| Valve Body-Specs | PVC |
| Disc | Polypropylene (PP) |
| Stem | 316 Stainless Steel |
| Disc Seat/Liner | EPDM |
| Enclosure Protection | IP66 & IP68 weatherproof |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Connections | 1/4" NPT |
| Actuator Seals | NBR |
