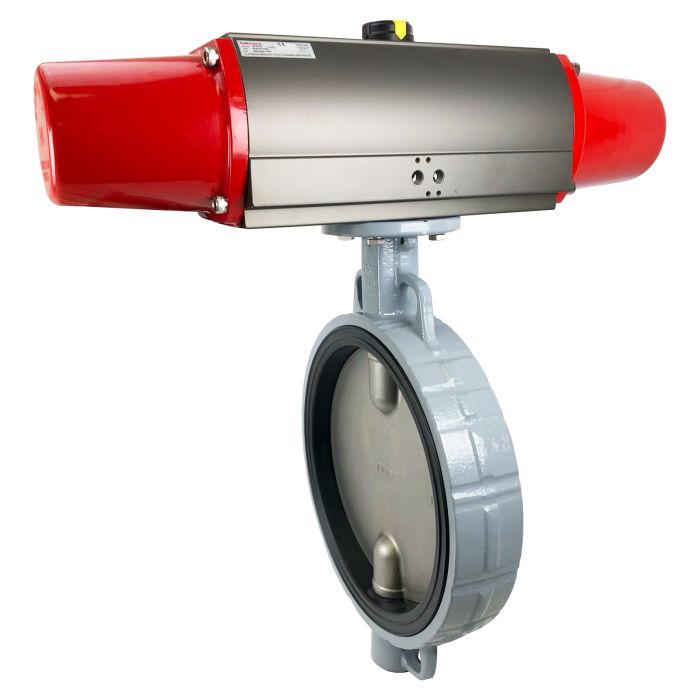

10" Air Actuated Butterfly Valve, Wafer, EPDM, Scotch Yoke, Spring Return

SKU
564210
Series
5642

List Price: $1,716.44

Price: $1,373.15
  • Buy 3 for $1,235.84 each and save 10%
- +
Air actuated soft seated butterfly valve for on-off control of water and other media compatible with the materials of construction. Wafer style valve sandwich mounts between standard ANSI /ASME B16.5 Class 150 flanges and other international standards. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal.

Butterfly Valve Standard Features
  • Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
  • Extended life span of valve and seals with unique wave line seat and special disc shape
  • Reduced torque from wave seal and disc design reduces size of actuator, lowering the cost
  • Increased flow capacity with unique profile disc and two piece shaft design
  • Valves direct mount to actuator using standard ISO5211 international standards

  • Pneumatic Actuator Standard Features
  • Extended cycle life (1 million cycles)
  • Scotch yoke design
  • Highly visible valve position indicator
  • Type IP66 & IP68 weatherproof
  • Factory lubricated for long life
  • Anodized aluminum body with epoxy-polyester covers
  • Dry or lubricated pilot air
  • Namur & ISO mounting

  • Options (see Accessories tab)
    More Information
    Actuator SealsNBR
    Actuator Temperature Range-4 to 167 °F (-20 to +75 °C)
    Air Connections1/4" NPT (plus NAMUR pad for solenoid valve)
    Air Pilot Pressure80-120 PSI
    Cycle TimeApprox. 3.1 seconds per 90° rotation
    Disc316 Stainless Steel
    Disc Seat/LinerEPDM
    Flow FactorCv 4498 (Cv = number of GPM of 60 °F water at 1 psi pressure drop)
    Pipe Size10 inch wafer design
    Pressure Rating29 inHg vacuum to 145 PSI
    Shaft SealsEPDM V-ring
    Suitable FlangesANSI /ASME 125/150, EN1092 PN10, PN16, BS10 Table D, Table E, JIS B2239 10K, 16K
    TypeAir Actuated Wafer Butterfly Valve- Spring Return
    Upper/Lower StemSS420
    Valve BodyDuctile iron, epoxy coating (seat facing acts as flange gasket)
    Valve Temperature Range0 to 248 °F (-18 to +120 °C)
    Direct Mount Solenoid Valves
    Limit Switch
    Digital Smart Positioner
    Manual Override Gear Operator
