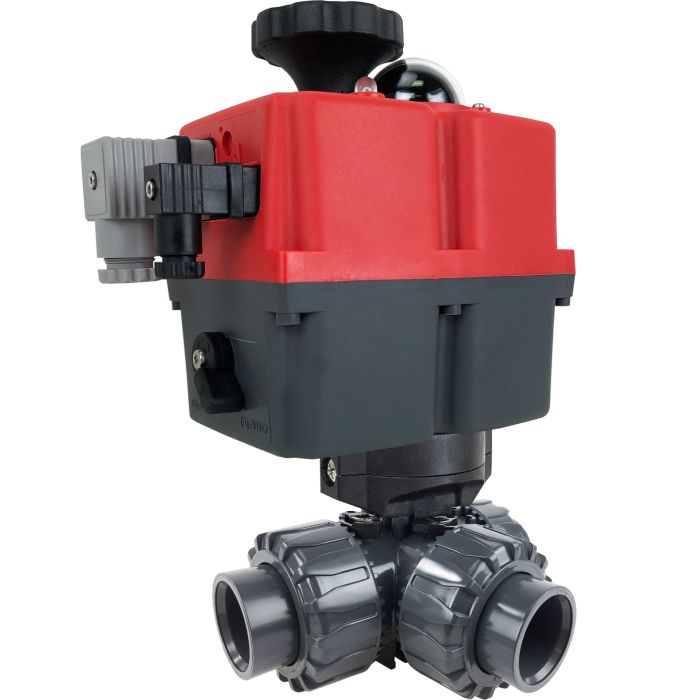

1" Electric 3-way L-Port PVC Ball Valve PTFE/EPDM, 24-240V

Valworx 561408E electric actuated 3-way L-port PVC ball valves are typically used to control the flow of water and other liquid media compatible with the materials of construction (not suitable for air or gas). These valves can be used as either a diverter valve or selector valve. Ideal for applications where NSF certified construction is required for potable drinking water as well as other industrial applications. There is no flow shutoff position with this type valve. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in the last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is automatically stopped by an internal cam striking a limit switch. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.

Ball Valve Standard Features

Industrial grade full port PVC ball valve

Tru Union nuts with locking device prevents back-off

Energized PTFE ball seats for lower torque and extended life

Leak free dual stem seal design

Micro-adjustable ball seat carrier

Pressure rated 232 PSI at 73°F

Series 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water

Includes IPS glue sockets and NPT end connectors

Electric Actuator Standard Features

Anti-corrosive polyamide IP67 weatherproof enclosure

External LED diagnostic light

Multi-voltage with auto-voltage sensing

Electronic over-torque protection

Anti-condensation heater

Manual override

Highly visual valve position indicator

Electrical connections by DIN plug connectors (included)

Auxiliary limit switches to confirm open/closed valve position

CE marked

Options (see Accessories tab)
