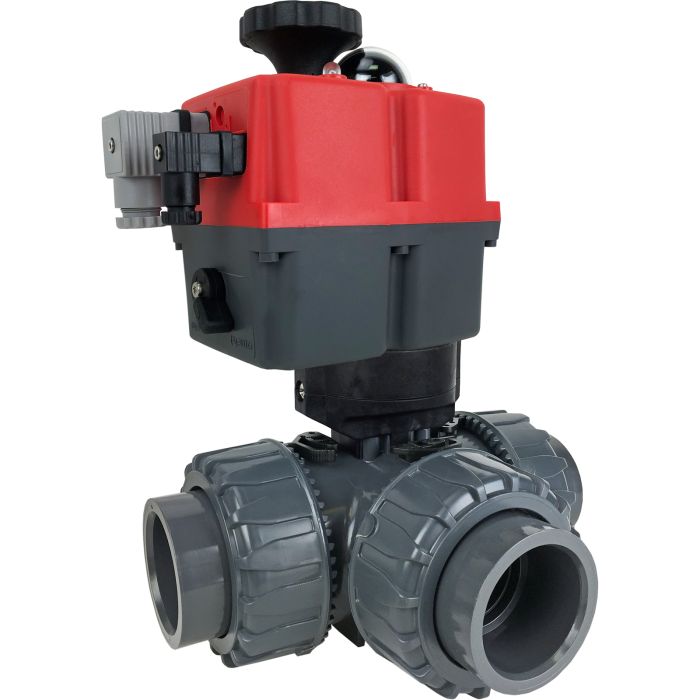

2" Electric 3-way T-Port PVC Ball Valve PTFE/EPDM, 24-240V
Stock #
562816C
Series
5628
List Price: $921.49
Price: $737.19
- Buy 3 for $663.47 each
Usually Ships: Same Day
Valworx 562816C electric actuated 3-way T-port PVC ball valves are typically used to control the flow of water and other liquid media compatible with the materials of construction (not suitable for air or gas). Ideal for applications where NSF certified construction is required for potable drinking water as well as other industrial diverter valve applications. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in the last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is automatically stopped by an internal cam striking a limit switch. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Ball Valve Standard FeaturesIndustrial grade full port PVC ball valve Tru Union nuts with locking device prevents back-off Energized PTFE ball seats for lower torque and extended life Leak free dual stem seal design Micro-adjustable ball seat carrier Pressure rated 232 PSI Series 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water Includes IPS glue sockets and NPT end connectors
Electric Actuator Standard FeaturesAnti-corrosive polyamide IP67 weatherproof enclosure External LED diagnostic light Multi-voltage with auto-voltage sensing Electronic over-torque protection Anti-condensation heater Manual override Highly visual valve position indicator Electrical connections by DIN plug connectors (included) Auxiliary limit switches to confirm open/closed valve position CE marked
Options (see Accessories tab)
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated PVC 3 Way Valve- Multivoltage |
|---|---|
| Actuator Voltage | 24- 240 VAC/DC (50/60Hz) auto-voltage sensing |
| Current Rating | 0.30A @ 110VAC, 0.16A @ 240VAC, 1.28A @ 24VAC 0.97A @ 24VDC (full load amps) |
| Cycle Time | 9 seconds per 90° rotation |
| Duty Cycle | 75% |
| Pipe Size (in)-Specs | 2" (both IPS glue socket and NPT end connectors included) |
| Full Port Orifice Size (inches) | 2.38 |
| Cv | 84.0 |
| Pressure Rating | 232 PSI |
| Valve Temperature Range | 32 to 140°F (0 to 60°C) |
| Actuator Temperature Range | -4 to 158°F (-20 to 70°C) |
| Valve Body/Ball | PVC |
| Body/Ball Material | PVC |
| Ball | PVC |
| Stem | Stainless Steel |
| Ball Seat Material | PTFE/ EPDM |
| Stem Seal Material | EPDM |
| Enclosure | Anti-corrosion polyamide, UV protection, SS fasteners |
| Enclosure Protection | IP67 weatherproof, UV protection |
| Electrical Connections | DIN plugs with cable entry (optional 1/2" conduit plugs or pre-wired cable) |
| Valve Position Confirmation | 2 x SPDT auxiliary limit switches rated 3A@125/250VAC, 30VDC resistive load |
| Valve Position Indicator | Dome Indicator |
| Manual Override | Hand knob |
| Motor Protection | Electronic over-torque with LED status light |
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Max Fluid Velocity | 5 feet per second |
