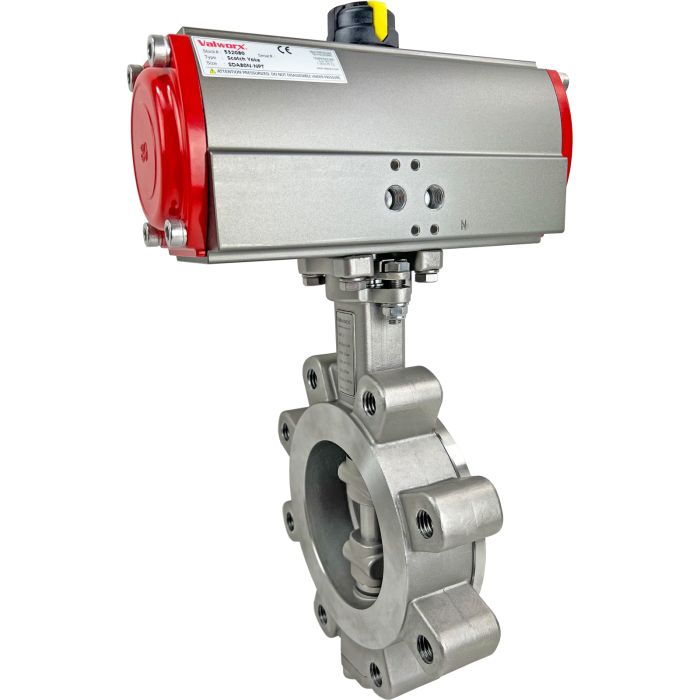

4" High Performance Butterfly Valve, Lug, Scotch Yoke, Double Acting
Stock #
547704A
Series
5477
List Price: $1,877.65
Price: $1,502.12
- Buy 3 for $1,351.91 each
Usually Ships: Same Day
Valworx 547704A high performance stainless steel butterfly valve for control of air, oil and other media compatible with the materials of construction. Lug style valve sandwich mounts between customer supplied ANSI /ASME Class 150 and other international standard flanges and gaskets. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad.
High Performance Butterfly Valve Standard FeaturesHigh quality, passivated 316 stainless steel (CF8M) body for excellent corrosion resistance Double offset design greatly reduces seal wear 17-4PH stainless steel, single piece shaft RPTFE valve seats and stem seals Heavy duty, single piece cast and machined disc with integral mounting sleeve Bi-directional seal design ensures increased sealing force in either flow direction Integral ISO 5211 mounting pad eliminates additional mounting brackets
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Scotch yoke design Highly visible valve position indicator Type IP66 & IP68 weatherproof Anodized aluminum body with epoxy-polyester covers Dry or lubricated air Namur & ISO mounting
Options (see Acccessories tab)
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad.
High Performance Butterfly Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Acccessories tab)
| Type | Air Actuated High Performance Butterfly Valve- Double Acting |
|---|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size (in)-Specs | 4" (DN100) |
| Disc Size (inches) | 3.78 |
| Suitable Flanges | ANSI/ASME B16.5 Class150, EN1092 PN10, PN16, PN25, AP I609 Class B, JIS B2239 10K, 16K |
| Cv | 375 |
| Pressure Rating | 285 PSI, Full Vacuum |
| Valve Temperature Range | -40 to 450°F (-40 to 230°C) |
| Actuator Temperature Range | -4 to 167°F (-20 to 75°C) |
| Valve Body-Specs | 316 Stainless Steel |
| Disc | 316 Stainless Steel |
| Stem | 17-4PH Stainless Steel |
| Disc Seat/Liner | RPTFE |
| Stem Packing | RPTFE |
| Enclosure Protection | IP66 & IP68 weatherproof |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Connections | 1/4" NPT |
| Actuator Seals | NBR |
