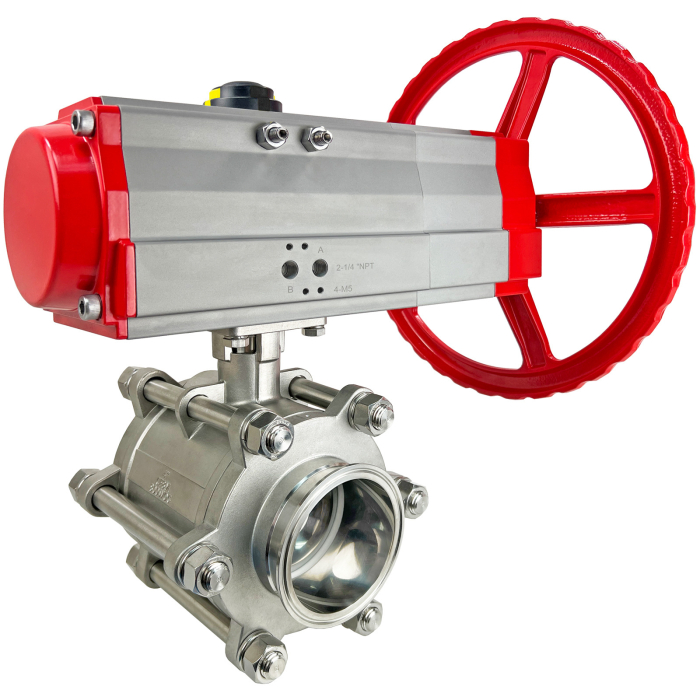

4" Sanitary Ball Valve, Air/Manual Double Acting, Tri-Clamp
Stock #
575307
Series
5753
List Price: $3,043.39
Price: $2,434.71
Usually Ships: 9- 16 Weeks
Valworx 575307 Pneumatic/Manual Sanitary Ball Valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Highly polished internals (8- 12 Ra finish). Dyneon PTFE ball seats and cavity fillers are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. Double acting actuator design uses an air pressure signal (80-120 PSI) to open and close the valve. The de-clutch option can be used for manual operation or to set a limit stop for opening or closing.
Clocked mounting orientation is standard (actuator perpendicular to pipeline). In-line mounting option (actuator parallel to pipeline) available. Select as an option on the Accessories tab.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections Actuator Ready ISO5211 Direct Mounting Pad All valves are tested per API 598 Suitable for vacuum up to 29inHg
Pneumatic/Manual Actuator Standard FeaturesIntegrated handwheel for manual operation Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting ATEX approved
Options (see Accessories tab)
Clocked mounting orientation is standard (actuator perpendicular to pipeline). In-line mounting option (actuator parallel to pipeline) available. Select as an option on the Accessories tab.
Ball Valve Standard Features
Pneumatic/Manual Actuator Standard Features
Options (see Accessories tab)
