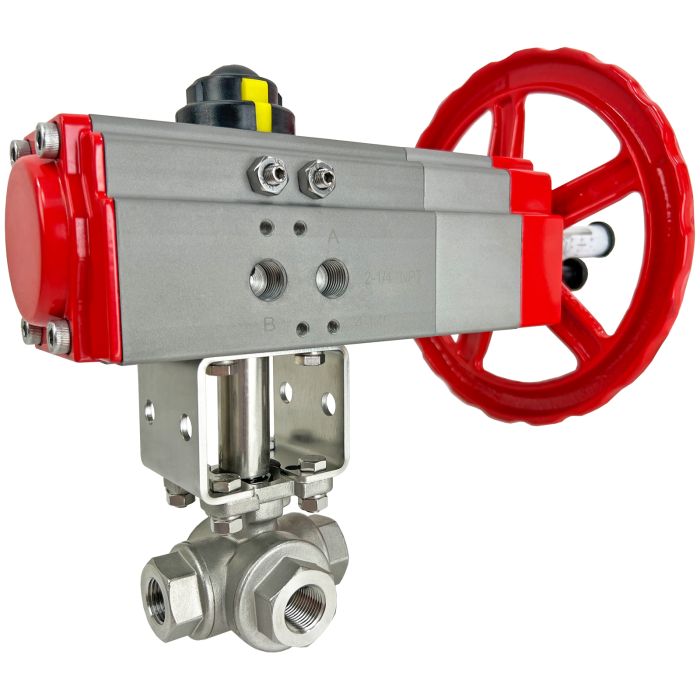

3/8" Pneumatic/Manual 3-Way SS T-Port Ball Valve, Double Acting
SKU
525703
Series
5257
List Price: $440.00
Price:
$352.00
- Buy 3 for $316.80 each and save 10%
Valworx 525703 Pneumatic/Manual stainless three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. This diverter valve has a T-port flow pattern. There is no flow shutoff position with this type valve. Double acting actuators use an air pressure signal (80-120PSI) to change the valve to position 1 or position 2. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Valve is tested per API 598, can be mounted in any orientation.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Full port design 316 stainless steel body, ball and stem Four ball seat design allows for full pressure at any port RTFE ball seats for extended cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable Valve direct mounts to actuator per ISO5211
Pneumatic Actuator Standard FeaturesIntegrated handwheel for manual operation Rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester covers Namur & ISO mounting ATEX Approved
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
Direct Mount Solenoid Valves
-
-
-
ISO DIN Plug with 16ft Cable for Solenoid ValvesStock #: 588013Usually Ships: Same DayPrice: $31.92
Limit Switch
Digital Smart Positioner
Electro-Pneumatic Positioner
Spring Check Valve
-
-
3/8" Stainless 3-Way Ball Valve, T-Port, Direct MountStock #: 552903CUsually Ships: Same DayPrice: $129.78 -
