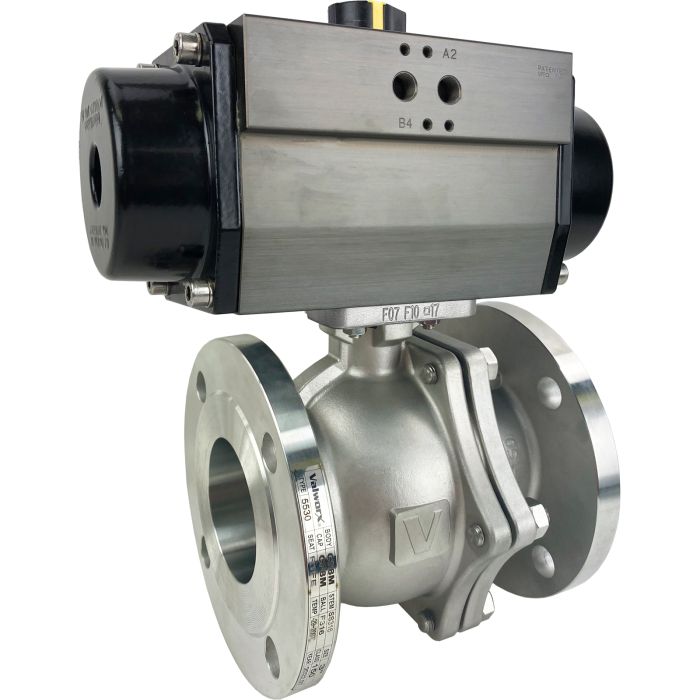

3" Air Actuated 150# Flanged SS Ball Valve - Double Acting

SKU
525241A
Series
5252

List Price: $2,127.42

Price: $1,701.94
  • Buy 3 for $1,531.74 each and save 10%
- +
Valworx 525241A air actuated low emission 2-piece 150# flanged stainless steel ball valves for on-off control of oil & gas, water, air and other media compatible with the materials of construction. Dual-certified fire-safe/low emission valve made of 316 stainless steel mounts between standard ANSI 150 pound pipe flanges. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Ball valve can be mounted in any orientation. All valves are tested per API 598.

Ball Valve Standard Features
  • Full port for unrestricted flow
  • 316 stainless steel body, ball and stem
  • Blow out proof stem
  • RTFE ball seats extend cycle life
  • Braided graphite/Viton Stem Seal Design, Live Loaded
  • ISO5211 direct mounting
  • Anti-Static Design

  • Pneumatic Actuator Standard Features
  • Extended cycle life (1 million cycles)
  • Quarter turn rack & pinion design
  • Highly visible valve position indicator
  • Dry or lubricated pilot air
  • Factory lubricated for normal life
  • Anodized aluminum body with epoxy-polyester coated end covers
  • Namur & ISO mounting

  • Options (see Accessories tab)
    More Information
    Actuator SealsNBR
    Actuator Temperature Range0 to 180 °F (-18 to 82 °C)
    Air Connections1/4" NPT (plus NAMUR pad for solenoid valve)
    Air Pilot Pressure80-120 PSI
    Ball and Stem316 Stainless Steel
    Ball SeatsRTFE (reinforced Teflon)
    Cycle TimeApprox. 1.5 second per 90° rotation
    Enclosure ProtectionIP67 Weatherproof
    Max Fluid Velocity10 feet per second
    Pipe Size3" ANSI Class 150# Flanged
    Port SizeFull Port, Orifice 3.20 inches, Cv 580
    Pressure (Max)275 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29inHg
    Stem SealsBraided Graphite/ FKM (Viton)
    TypeAir Actuated Flange Valve- Double Acting
    Valve Body316 stainless steel CF8M
    Valve Temperature Range-4 to +392 °F (-20 to +200 °C)
    Direct Mount Solenoid Valves
    Limit Switch
    Digital Smart Positioner
    Electro-Pneumatic Positioner
    High Temperature Mounting Kit
    Manual Override Gear Operator
    Spring Check Valve
