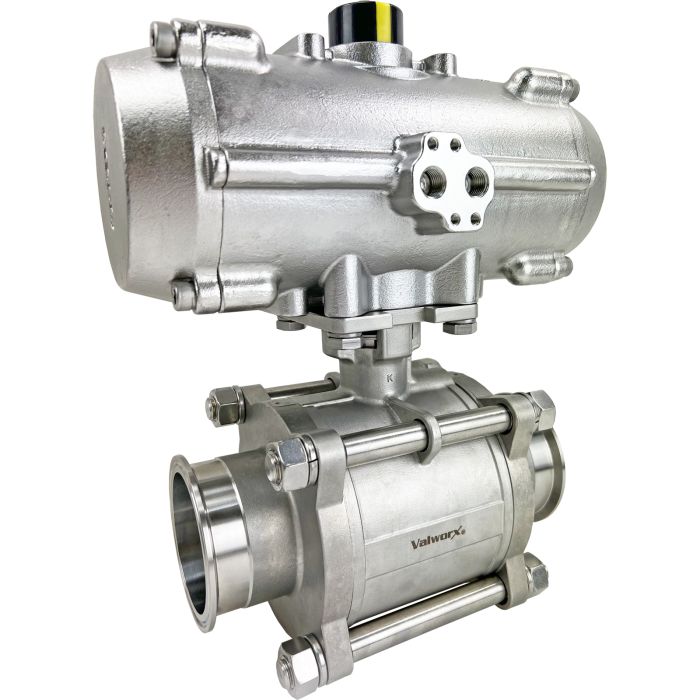

3" Sanitary Ball Valve, All Stainless Steel Spring Return, Tri-Clamp
Stock #
571906A
Series
5719
List Price: $3,040.49
Price: $2,432.39
- Buy 3 for $2,189.15 each
Usually Ships: Same Day
Valworx 571906A air actuated stainless steel sanitary ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. Highly polished internals (8- 12 Ra finish). Dyneon PTFE ball seats and cavity fillers are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections All valves are tested per API 598 Suitable for vacuum up to 29inHg
Pneumatic Actuator Standard Features316 Stainless steel body, pistons and pinion IP66 enclosure rating suitable for washdown applications Extended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Type | All Stainless Air Actuated Sanitary Ball Valve- Spring Return |
|---|---|
| Cycle Time | Approx. 3/1 seconds open/close per 90° rotation |
| Pipe Size ~ Tri-Clamp (inches) | 3" ~ 3" |
| Full Port Orifice Size (inches) | 2.90 |
| Cv | 780.0 |
| Shell Pressure | 800 PSI WOG |
| Valve Temperature Range | -4 to 356°F (-20 to 180°C) |
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Stem | 316 Stainless Steel |
| Internal Finish | 8- 12 Ra |
| Cavity Filler | Dyneon PTFE, encapsulated |
| Ball Seat Material | Dyneon PTFE |
| Stem Seal Material | PTFE/ Viton (live loaded and adjustable) |
| Disc Seat/Liner | EPDM |
| Enclosure Protection | IP66 weatherproof |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Consumption (SCI per 90° cycle) | 54.9 |
| Bolts/Nuts | 304 Stainless Steel |
