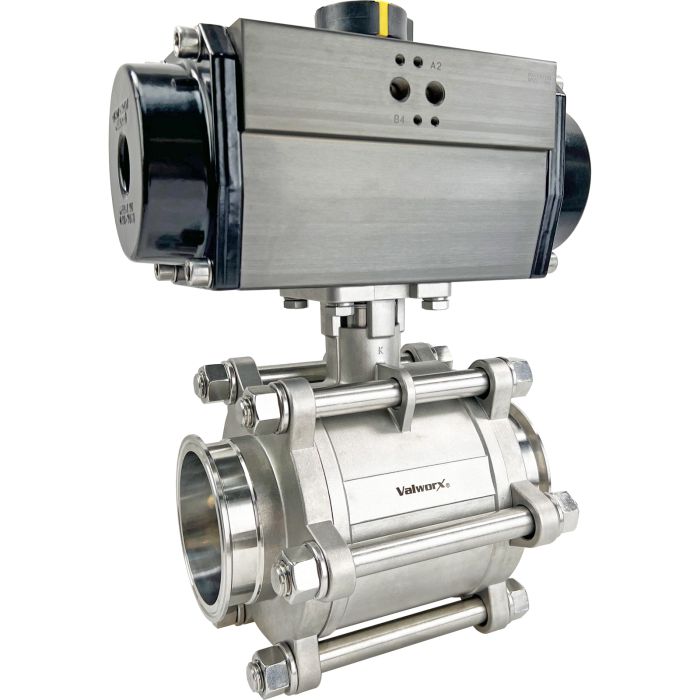

4" Sanitary Ball Valve, Double Acting Rack & Pinion, Tri-Clamp
SKU
570207A
Series
5702
List Price: $3,043.39
Price:
$2,434.71
- Buy 3 for $2,191.24 each and save 10%
Valworx 570207A air actuated stainless steel sanitary ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Highly polished internals (8- 12 Ra finish). Dyneon PTFE ball seats and cavity fillers are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and USDA requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections Actuator Ready ISO5211 Direct Mounting Pad All valves are tested per API 598 Suitable for vacuum up to 29inHg
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting
Options (see Accessories tab)
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 180°F (-20 to 82°C) |
|---|---|
| Air Pilot Pressure | 80-120 PSI |
| Ball Seats | Dyneon PTFE |
| Cavity Filler | Dyneon PTFE, encapsulated |
| Cycle Time | Approx. 1 second per 90° |
| Enclosure Protection | IP67 Weatherproof |
| Internal Finish | 8- 12 Ra |
| Max Fluid Velocity | 10 feet per second |
| Pipe Size ~ Tri-Clamp | 4" ~ 4" |
| Port Size | Full port, 2.9 inch orifice, Cv 1050.0 |
| Pressure (Max) | 800 PSI WOG |
| Stem Seals | PTFE/ Viton, live loaded |
| Type | Air Actuated Sanitary Ball Valve- Double Acting |
| Valve Bolts/Nuts | ASTM 304 stainless steel |
| Valve Body/Ball | ASTM 316 stainless steel |
| Valve Stem | ASTM 316 stainless steel |
| Valve Temperature Range | -4 to 356°F (-20 to 180°C) |
