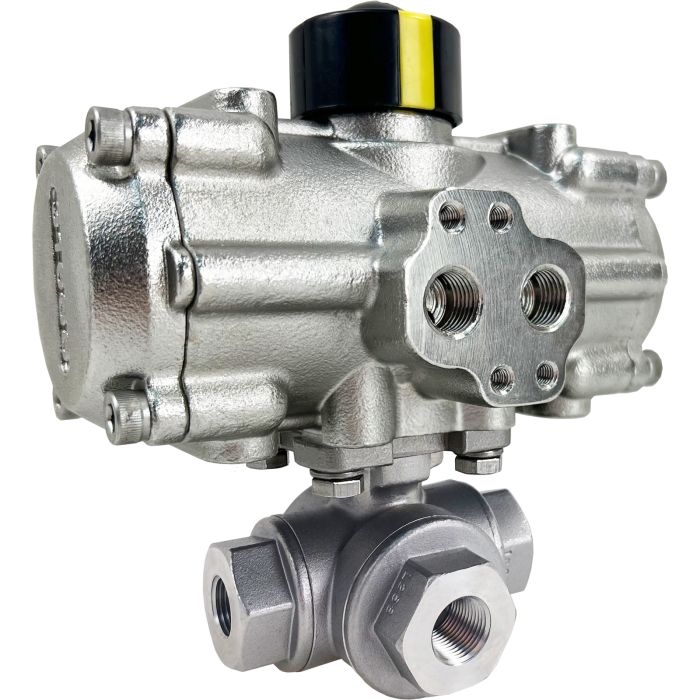

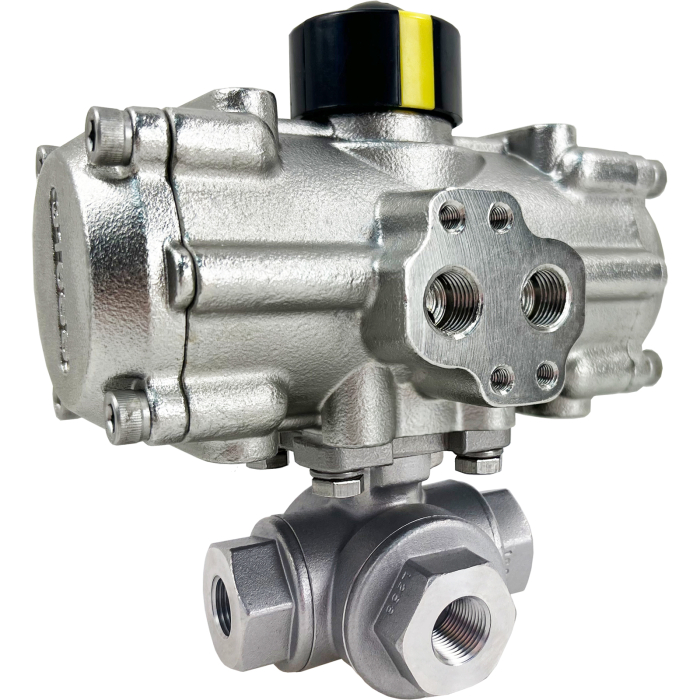

3/8" All Stainless 3-Way T-Diverter Valve, Double Acting
Stock #
533903
Series
5339
List Price: $618.94
Price: $495.15
- Buy 3 for $445.64 each
Usually Ships: Same Day
Valworx 533903 air actuated 3-way full port stainless steel ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. This diverter valve has a T-port flow pattern. There is no flow shutoff position with this type valve. 316 stainless steel construction of the valve and actuator offer superior corrosion resistance.
Rugged IP66 actuator enclosure suitable for washdown applications. Double acting actuators use an air pressure signal (80- 120PSI) to change the valve to position 1 or position 2. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port design 316 stainless steel body, ball and stem Four ball seat design allows for Full Pressure at any port RTFE ball seats for extended cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable
Pneumatic Actuator Standard Features316 Stainless steel body, pistons and pinion IP66 enclosure rating suitable for washdown applications Extended cycle life (1 million cycles) Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Namur & ISO mounting
Options (see Accessories tab)
Rugged IP66 actuator enclosure suitable for washdown applications. Double acting actuators use an air pressure signal (80- 120PSI) to change the valve to position 1 or position 2. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Type | All Stainless Air Actuated 3 Way T-Port Valve- Double Acting |
|---|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size (in)-Specs | 3/8" NPT female |
| Full Port Orifice Size (inches) | 0.43 |
| Cv | 7.3 |
| Pressure Rating | 1000 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29.92 InHg (2.3 x 10-3 Torr) |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | PTFE/ Viton (live loaded and adjustable) |
| Actuator Body/Pistons/Pinion | 316 Stainless Steel |
| Enclosure Protection | IP66 weatherproof |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Consumption (SCI per 90° cycle) | 12.2 |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Actuator Seals | NBR |
| Max Fluid Velocity | 10 feet per second |
