1/4" All Stainless Ball Valve - Spring Return
Stock #
533602
Series
5336
List Price: $548.42
Price: $438.74
- Buy 3 for $394.86 each
Usually Ships: 6- 8 Weeks

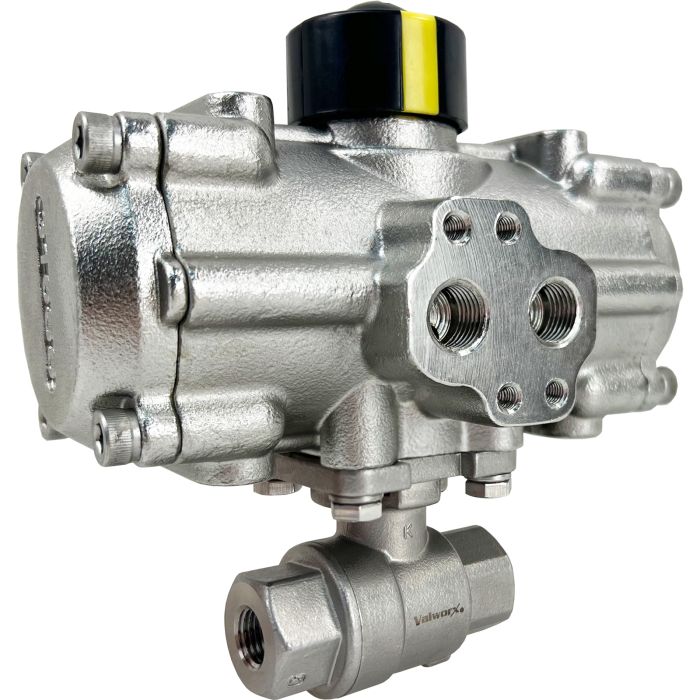

Valworx 533602 air actuated all stainless spring return ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. 316 stainless steel construction of the valve and actuator offer superior corrosion resistance. Rugged IP66 actuator enclosure suitable for washdown applications. Spring Return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Ball valve can be mounted in any orientation.
Ball Valve Standard Features
Options (see Accessories tab)
Ball Valve Standard Features
- 1000 PSI working pressure (see P/T chart)
- Direct mounting valve per ISO5211
- Full port for unrestricted flow
- 316 stainless steel body, ball and stem
- Blow out proof stem
- RTFE ball seats extend cycle life
- Triple PTFE/Viton stem seal design, live loaded and adjustable
- 316 Stainless steel body, pistons and pinion
- IP66 enclosure rating suitable for washdown applications
- Extended cycle life (1 million cycles)
- Quarter turn rack & pinion design
- Highly visible valve position indicator
- Dry or lubricated pilot air
- Factory lubricated for normal life
- Namur & ISO mounting
Pneumatic Actuator Standard Features
Options (see Accessories tab)
| Type | All Stainless Air Actuated 2 way Ball Valve- Spring Return |
|---|---|
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size (in)-Specs | 1/4" NPT female |
| Full Port Orifice Size (inches) | 0.45 |
| Cv | 6.9 |
| Pressure Rating | 1000 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29.92 InHg (2.3 x 10-3 Torr) |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -4 to 176°F (-20 to 80°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | PTFE/ Viton (live loaded and adjustable) |
| Actuator Body/Pistons/Pinion | 316 Stainless Steel |
| Enclosure Protection | IP66 weatherproof |
| Pilot Air Pressure (PSI) | 80-120 |
| Air Consumption (SCI per 90° cycle) | 12.2 |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Actuator Seals | NBR |
| Max Fluid Velocity | 10 feet per second |
