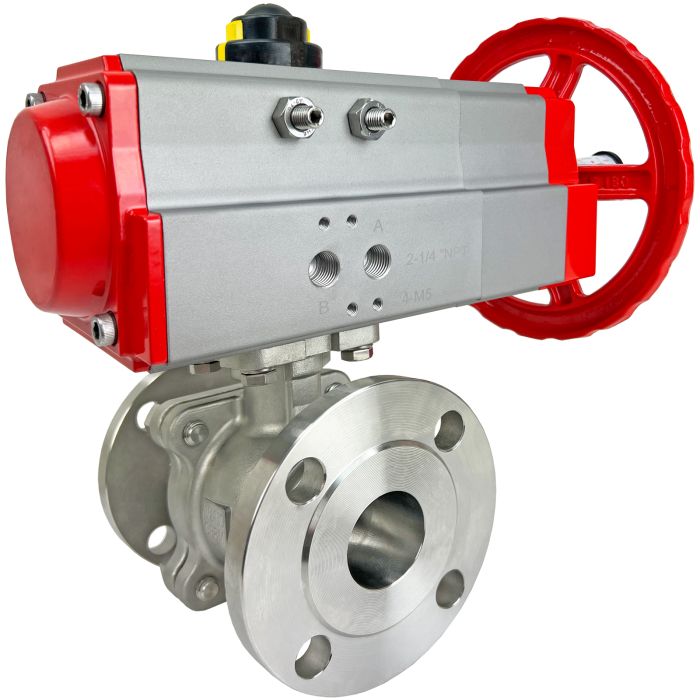

1-1/2" Pneumatic/Manual 150# Flanged SS Ball Valve - Spring Return
SKU
531812
Series
5318
List Price: $1,275.00
Price:
$1,020.00
- Buy 3 for $918.00 each and save 10%
Valworx 531812 Pneumatic/Manual low emission 2-piece 150# flanged stainless steel ball valves for on-off control of oil & gas, water, air and other media compatible with the materials of construction. Dual-certified fire-safe/low emission valve made of 316 stainless steel mounts between standard ANSI 150 pound pipe flanges. Spring return actuators use an air pressure signal (86-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. The de-clutch option can be used for manual operation or to set a limit stop for opening or closing. High temperature valve mounting kit available for extended temperature range or wall mounting applications. All valves are tested per API 598.
Clocked mounting orientation is standard (actuator perpendicular to pipeline). In-line mounting option (actuator parallel to pipeline) available. Select as an option on the Accessories tab.
Ball Valve Standard Features275 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Braided graphite/Viton stem seal design, live loaded and adjustable
Pneumatic/Manual Actuator Standard FeaturesIntegrated handwheel for manual operation Quarter turn rack & pinion design Highly visible valve position indicator Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers Namur & ISO mounting ATEX approved
Options (see Accessories tab)
Clocked mounting orientation is standard (actuator perpendicular to pipeline). In-line mounting option (actuator parallel to pipeline) available. Select as an option on the Accessories tab.
Ball Valve Standard Features
Pneumatic/Manual Actuator Standard Features
Options (see Accessories tab)
